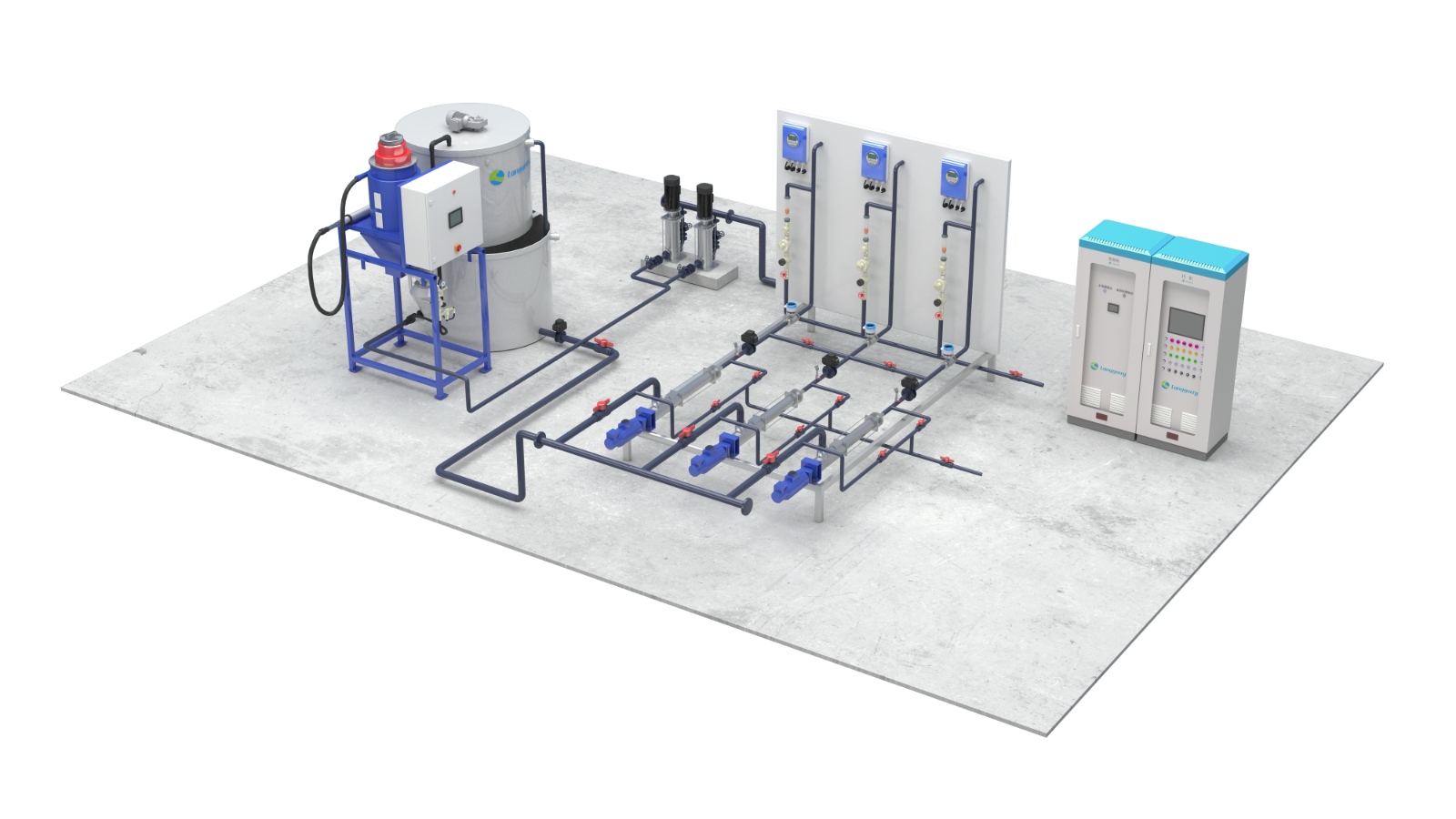

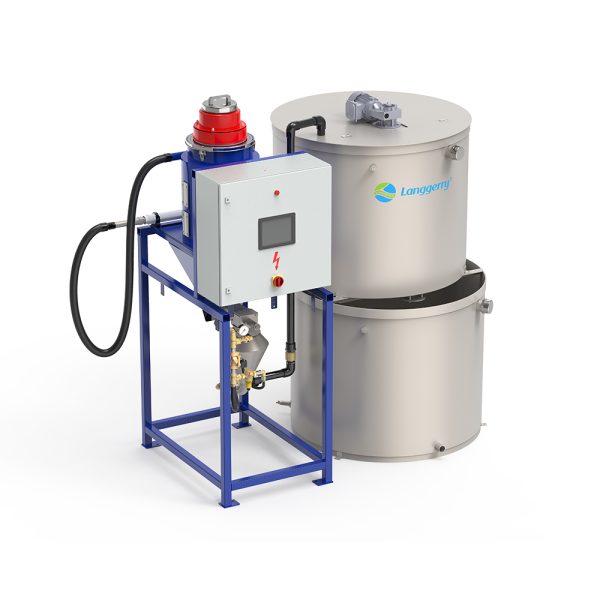

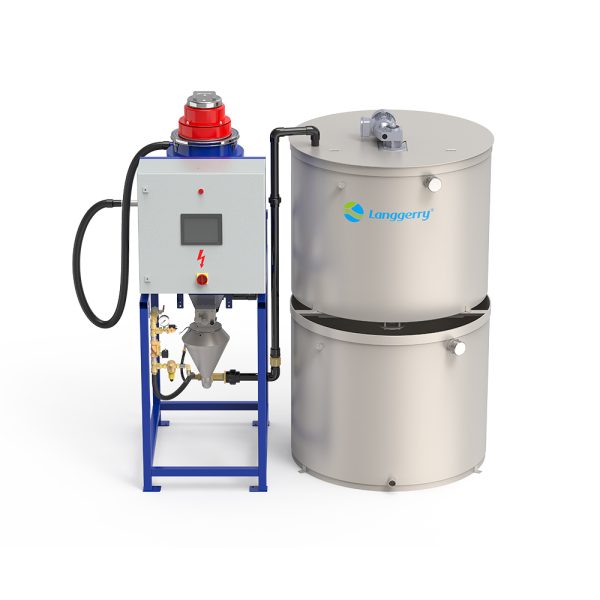

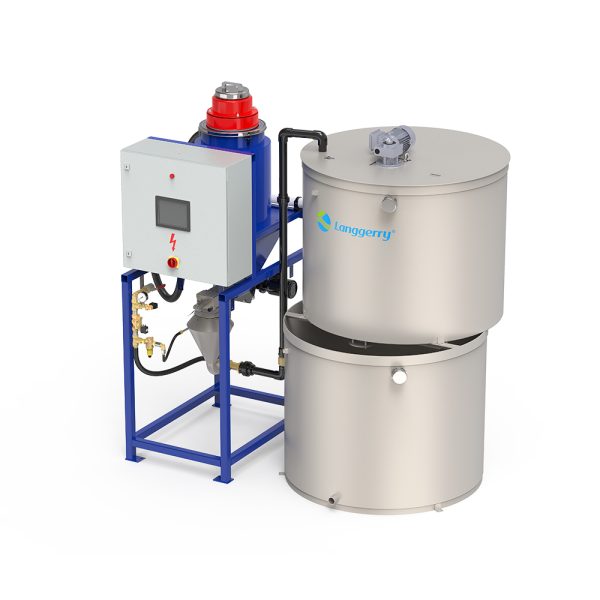

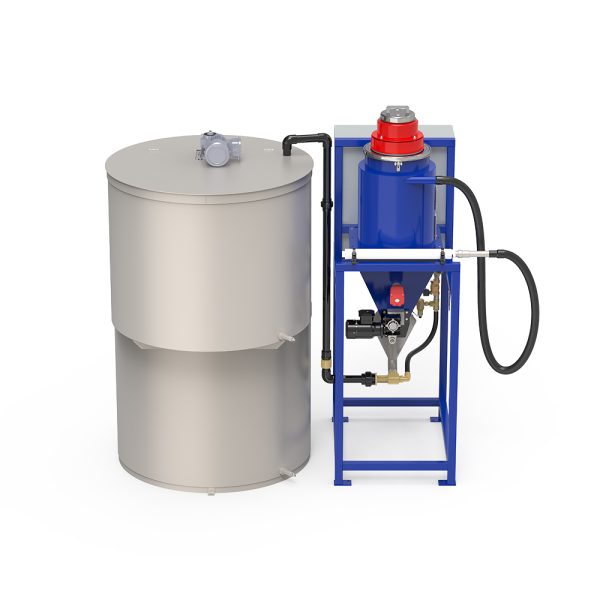

PAM intelligent dosing equipment

PAM intelligent dosing equipment is an intelligent equipment that integrates a preparation and maturation system, a storage system, a stirrer, a dry powder feeder, a humidification tank, a flow meter, a liquid level meter, a water injection system, and an intelligent control system. The PAM is accurately added to the reaction water body through a sequence batch process to completely dissolve and mature the solution, which is suitable for the coagulation and dehydration processes in the water plant.

  • Serial batch preparation, fully matured and efficient use of agents
  • Integrated upper and lower groove design, small footprint
  • Seamless connection of smart water affairs platform, digital operation and maintenance management
  • Connect to multiple communication modes to realize remote monitoring of the system

System purpose: The effect of improving the flocculation of water bodies and improving water quality
Principle of action: Flocculation, adsorption bridging, surface adsorption, enhancement
High precision: Automatically formulated into a 1-5% polymer solution
Operating ambient temperature: 5℃~40℃
power supply: Three-phase five-wire system, voltage: (380+38)V, frequency: (50±2)Hz
Input output: Output: LONWORK, PROFIBUS, MODBUSGSM/GPRS and BACNET input: 4-20MA
