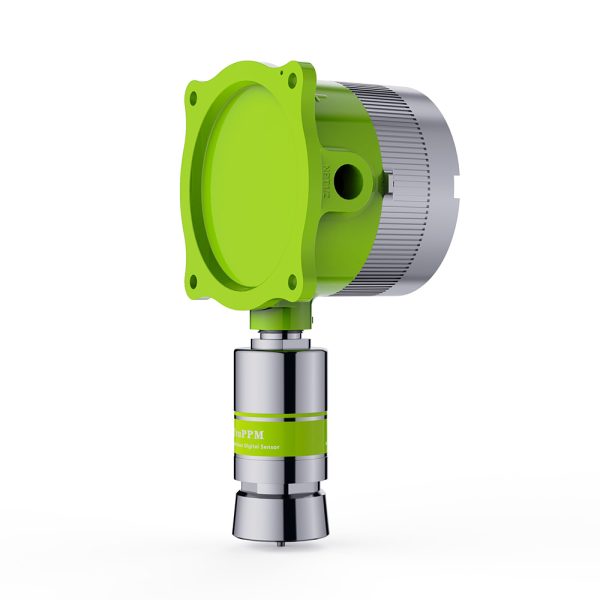

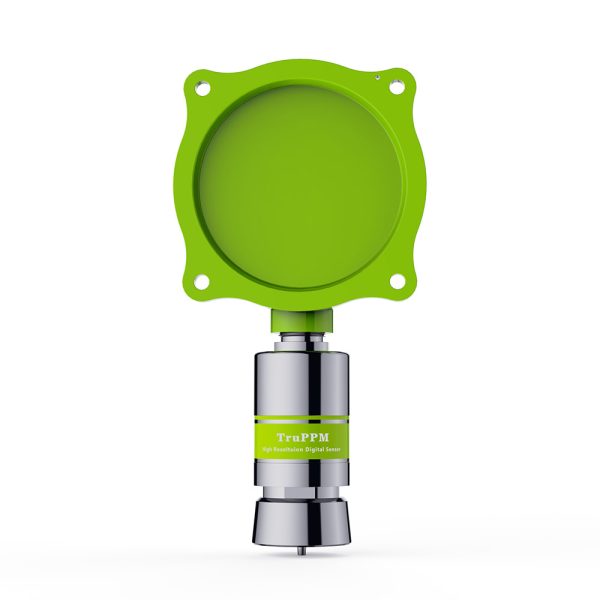

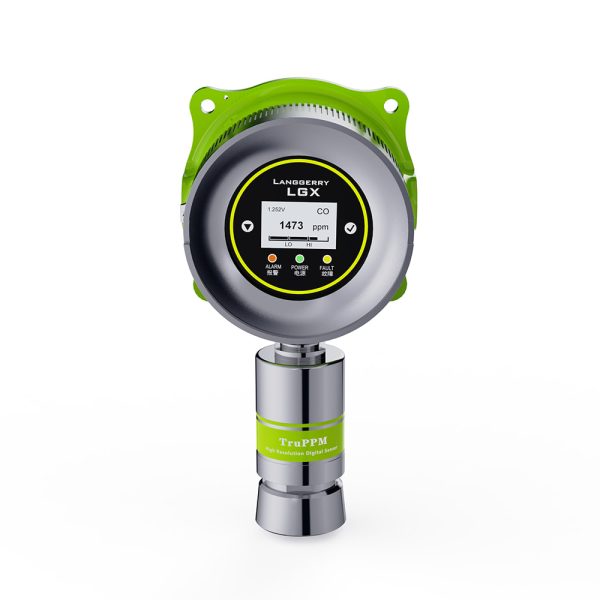

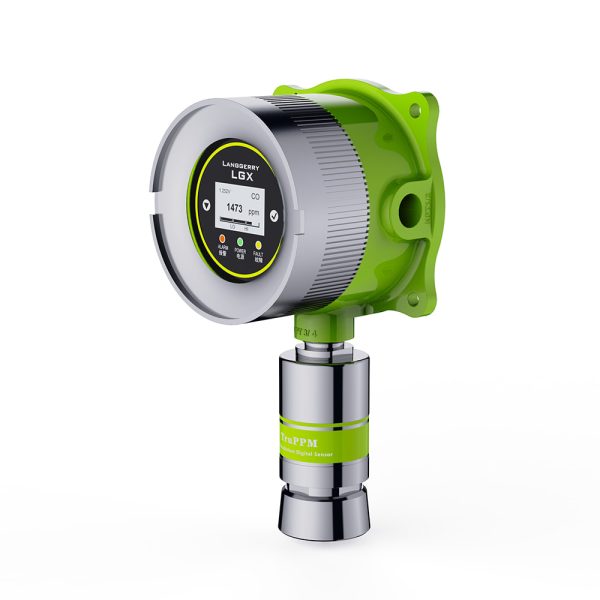

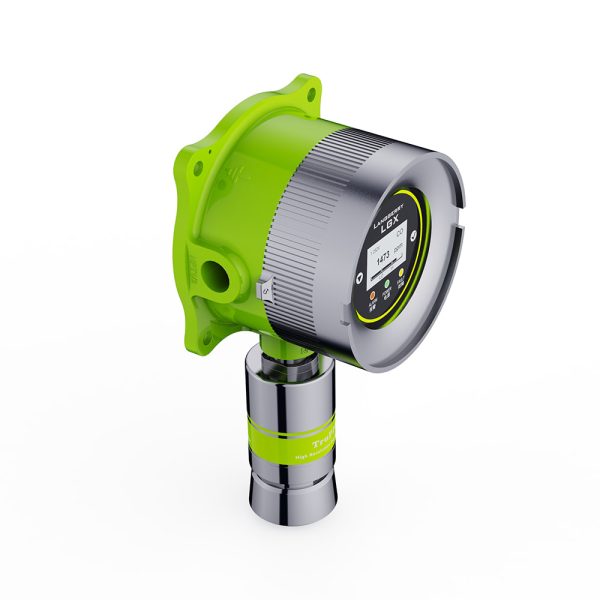

LGX fixed gas detector

Shell material: Cast aluminum alloy or 316 stainless steel
size: 255mm*130mm*105mm (length, width and height)
Sensor type: Catalytic combustion, electrochemistry, non-dispersive infrared, PID
Detection method: Diffuse
Supply voltage: 24VDC (18 to 28VDC)
Signal output: Three-wire 4-20mA linear output, RS485 output (Modbus-3RTU protocol) supports HRAT protocol, 3 relay output measurement accuracy: ±2% to±5% FS (depending on the gas type)
Repeatability: ≤2%
Response time: T90≤60S
Humidity range: ≤95%RH (non-condensing)
Temperature range: -40°C to 70°C
Environmental pressure: 85 to 115kPa
Protection level: IP66
Explosion-proof sign: ExdIICT6Gb
