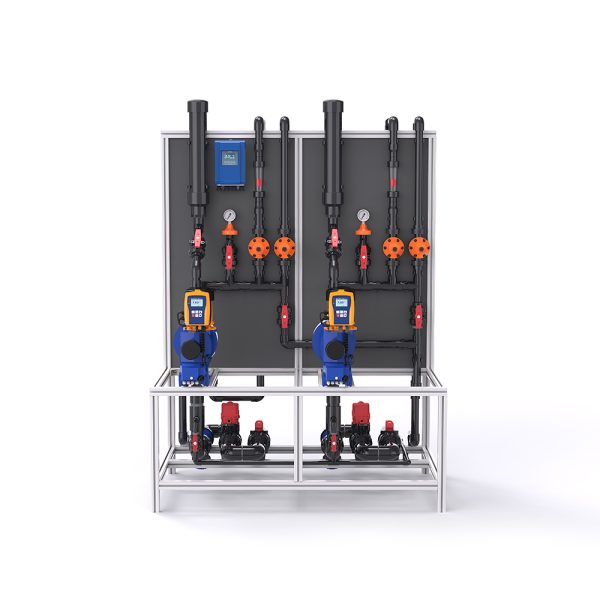

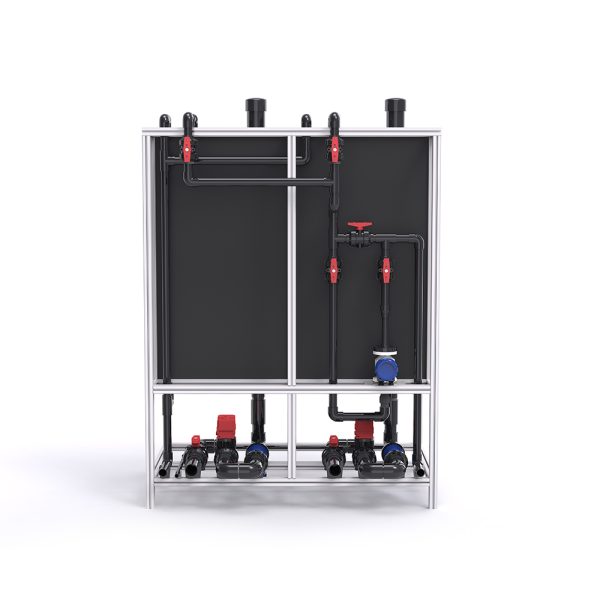

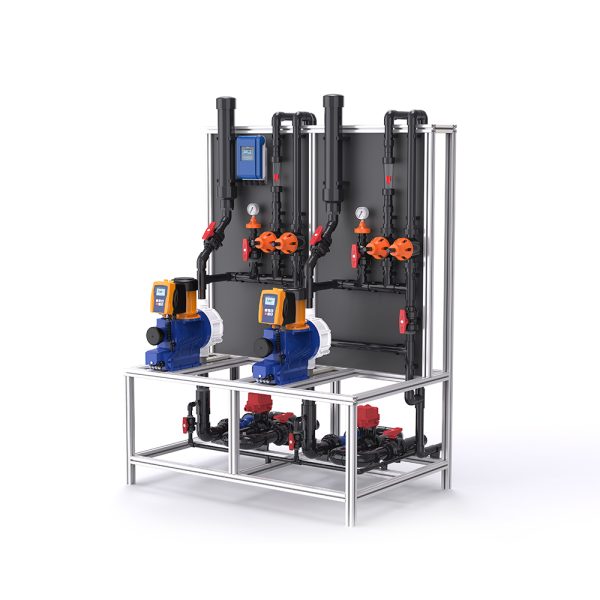

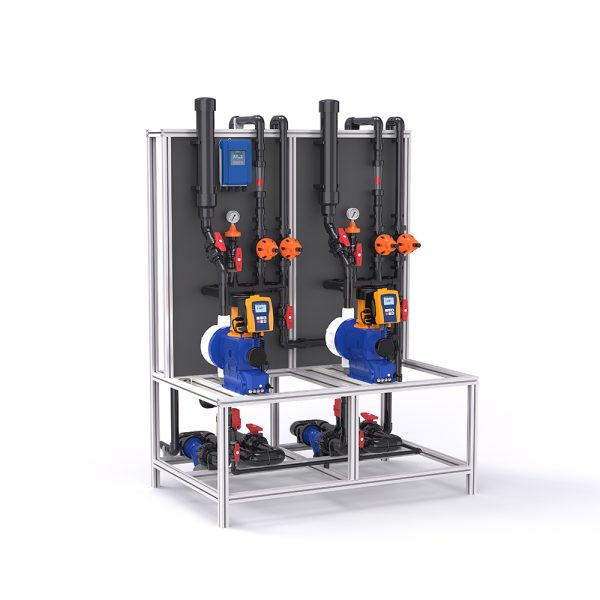

LG-S Intelligent Dosing Equipment

Intelligent dosing equipment is an intelligent equipment that integrates dosing pump, pulse damper, filter, safety valve, back pressure valve, pressure gauge, flow meter, and control system: the agent is accurately added to the reaction water body through the dosing system to achieve flocculation and precipitation, sterilization and disinfection, and regulate water quality.and other effects. The equipment adopts an integrated design and can provide a variety of skid-mounted solutions: at the same time, the footprint is small, which greatly reduces the workload of on-site construction and installation: the environment is highly applicable, and different agents can be added according to different needs to meet the requirements of corrosion resistance.

Fully automatic and intelligent operation, multiple functions guarantee
Accurate dosing and dosing accuracy error of only 1%, reducing production energy consumption and drug consumption
Smart platform, digital operation and maintenance management, to achieve management improvement and efficiency reduction
Connect to multiple communication modes to realize remote monitoring of the system

System purpose: Flocculation and precipitation, sterilization and disinfection, regulation of water quality, etc.
Applicable medicine: Sodium hypochlorite, polyaluminum chloride, sodium hydroxide, sodium acetate, potassium permanganate, hydrochloric acid, sulfuric acid and other aqueous agents
Input output: Input: 4-20mA
output: ETHERNET/IP, PROFIBUS, PROFINET, MODBUS, TCP/IP, GSM/GPRS and CC-LINK
Supporting facilities: Pulse damper, filter, safety valve, back pressure valve, pressure gauge, flow meter, etc.
Dosing accuracy: ±1%

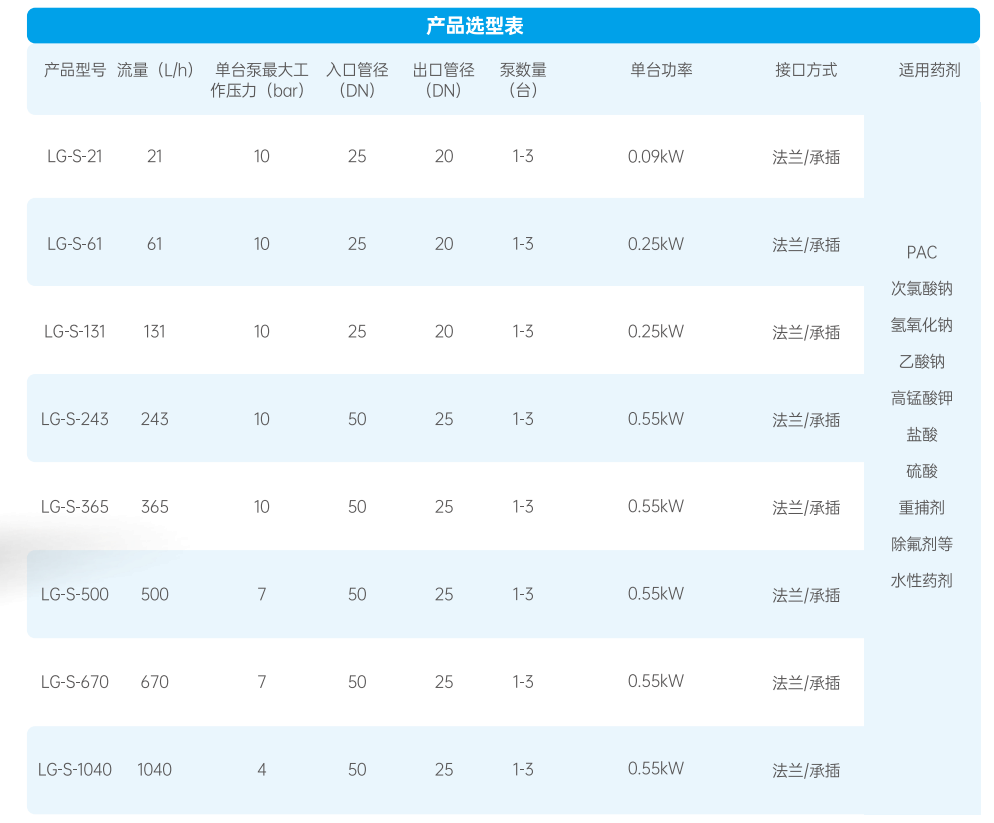

Scope of competence: 21L/h-1040L/h，12-4bar
Interface method: Flange/socket
power supply: Three-phase five-wire system
voltage: (380±8)V
frequency: (50±2)HZ
material: Aluminum alloy pump frame
Operating ambient temperature: 5℃~40℃℃
