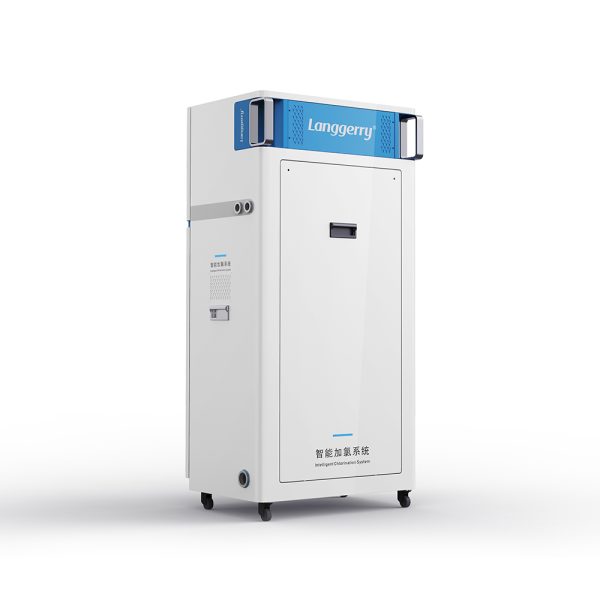

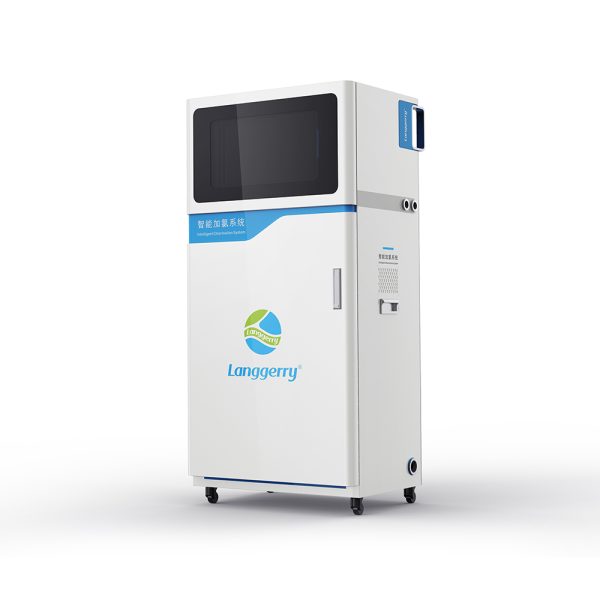

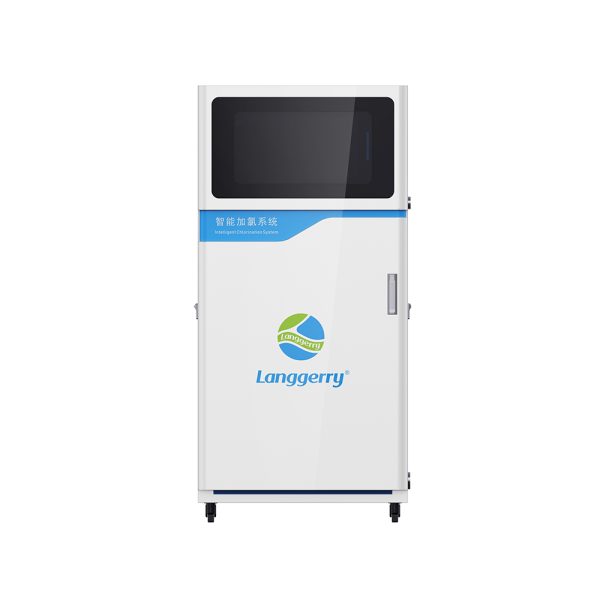

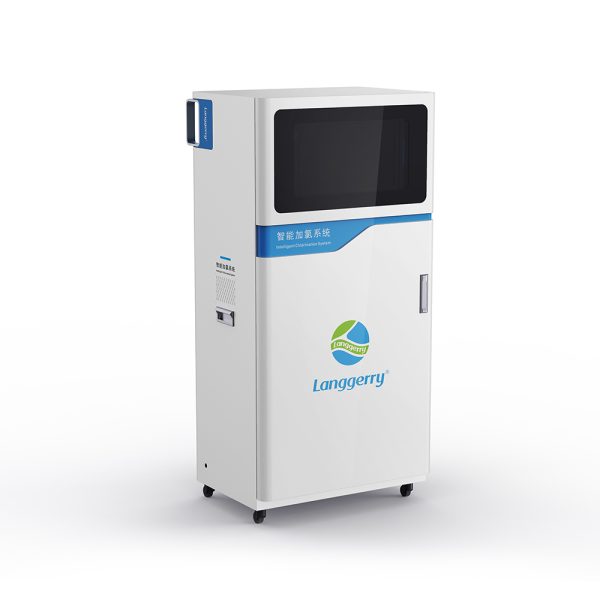

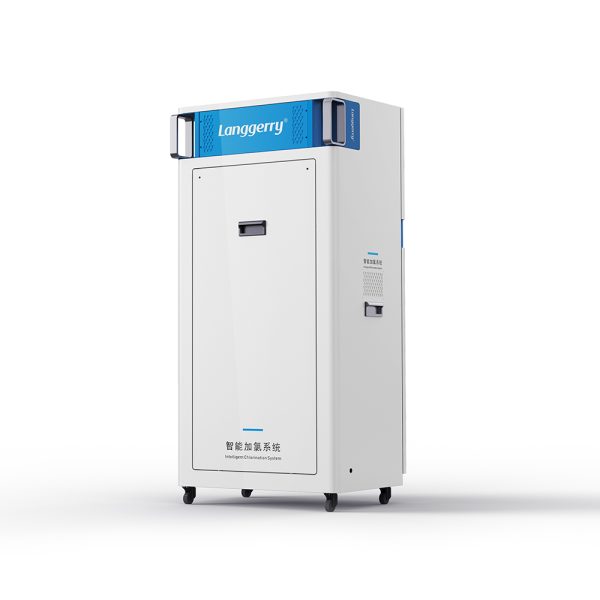

LG-GXL Intelligent Chlorination System

The intelligent chlorination system is an intelligent equipment that integrates an dosing system and an intelligent control system. The disinfectant is accurately added to the reaction water body through the equipment to achieve the effects of sterilization, water quality regulation, and chlorine supplementation. It can be connected to the residual chlorine sensor to realize automatic intelligent dosing and unattended.

  • The amount of addition is automatically calculated based on the feedback, and the accuracy error of the addition is only 1%
  • Connect to multiple communication modes and configure mobile phone APPS to realize remote monitoring of the system
  • Integrated box design, bottom caster design, easy to move and easy to transport
  • Configure video surveillance, 4G networking, and security as you like

System purpose: Sterilization, disinfection, regulation of water quality, chlorine supplementation, etc.
Application scenario:Midway pressurized pumping stations, water supply for residential areas, disinfection and dosing of rural drinking water
Dosing accuracy: ±1%

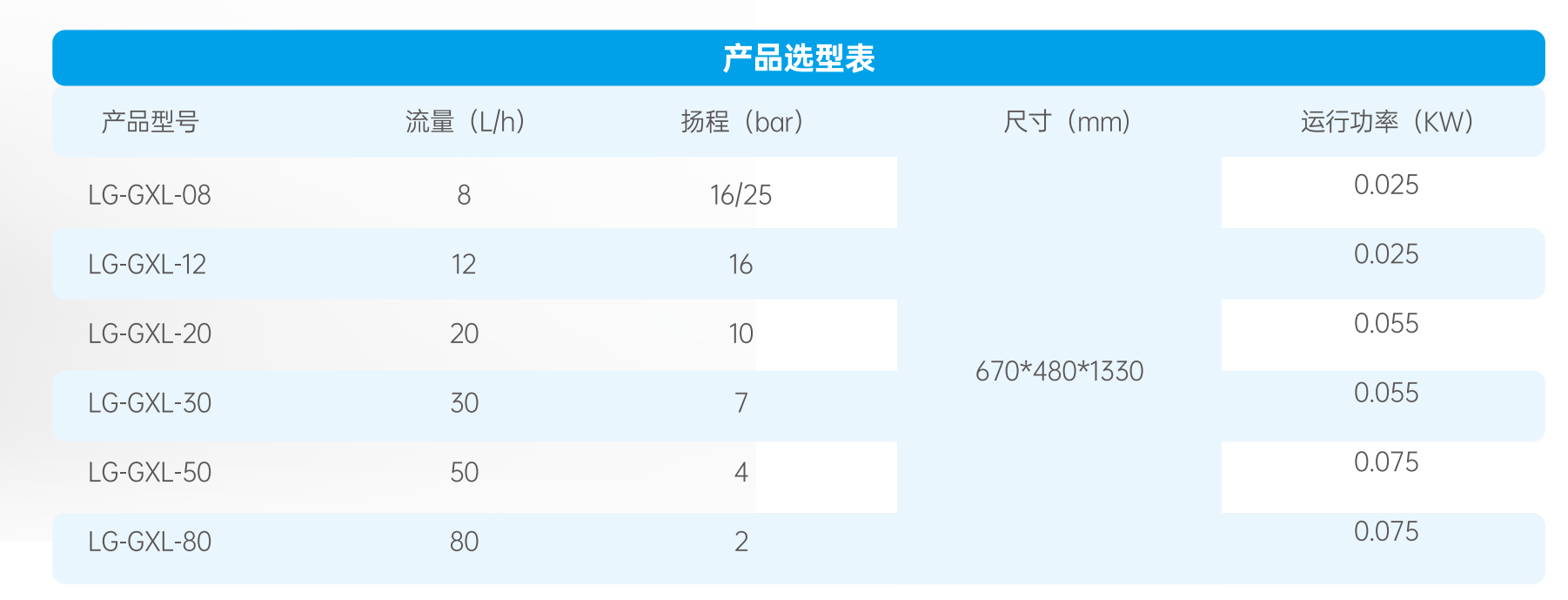

Scope of competence: 4mI/h-80L/h，25-2bar
Body material: SPCC cold rolled sheet
size: 670mm*480mm*1330mm(W*D*H)
Display method: 15.6inch 2K HD touch screen
power supply: Single-phase three-wire system
voltage: (220±22)V
frequency: (50±2) Hz
Signal input: 0-10V/4-20mA/modbusRTU
Operating ambient temperature: 5℃℃~40℃C
